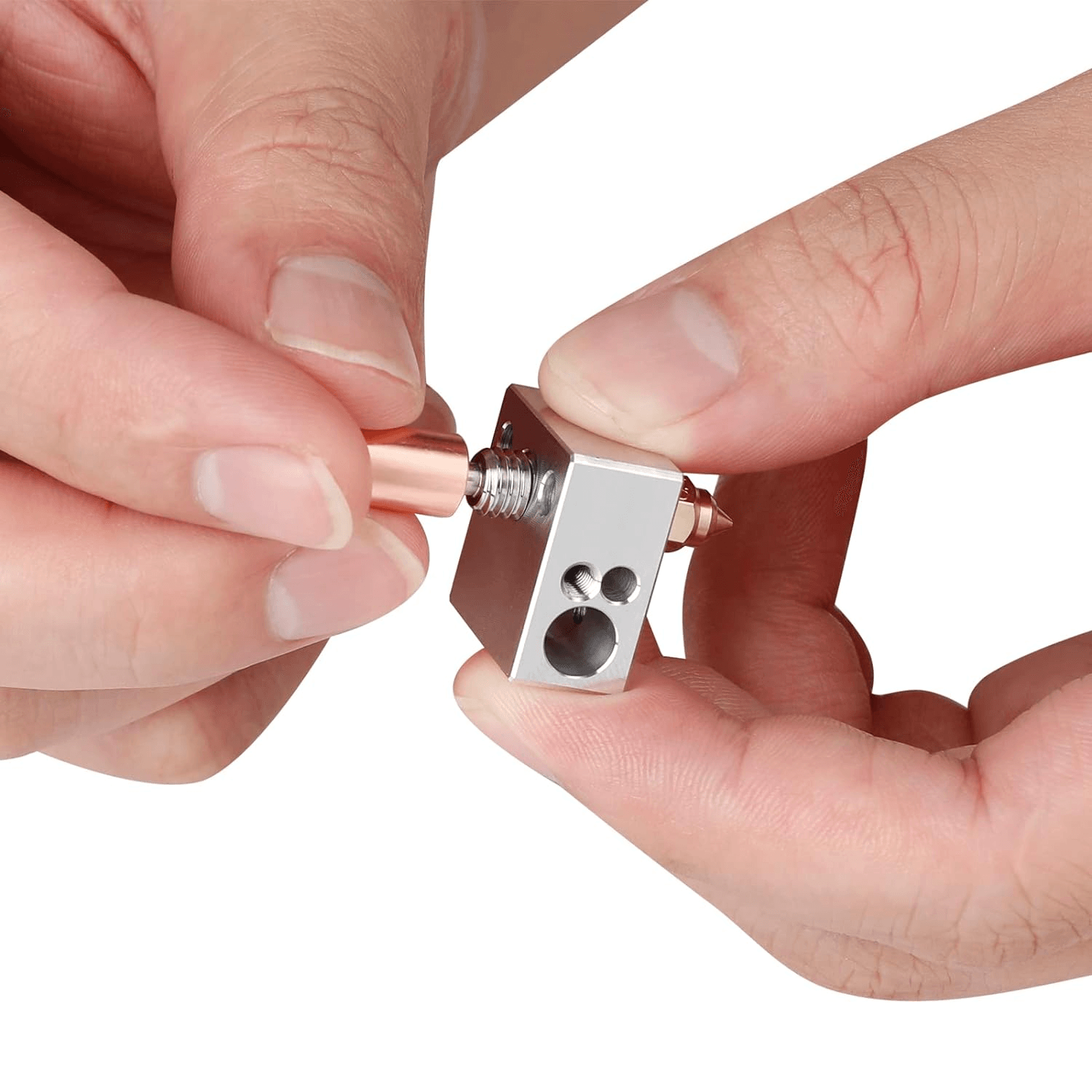

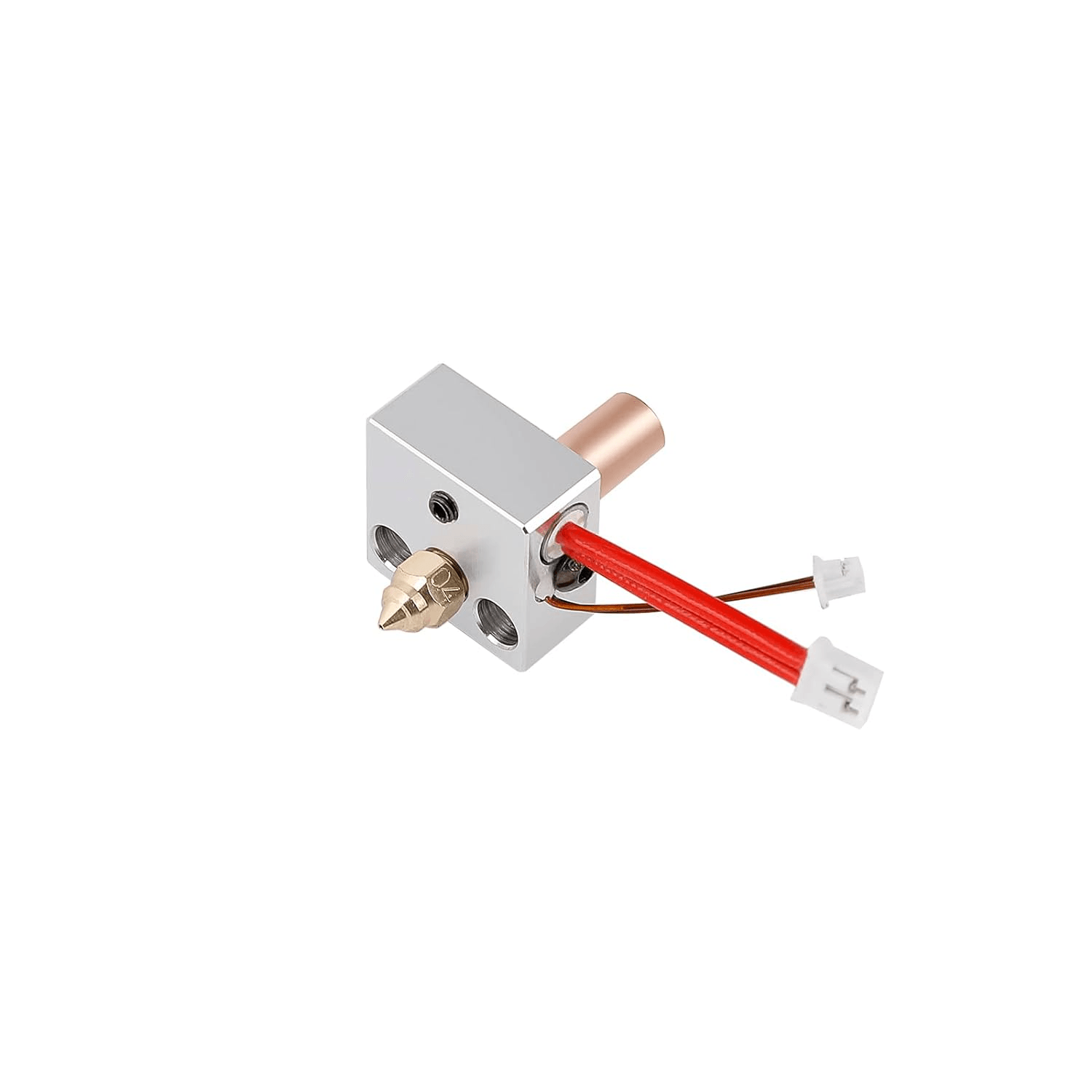

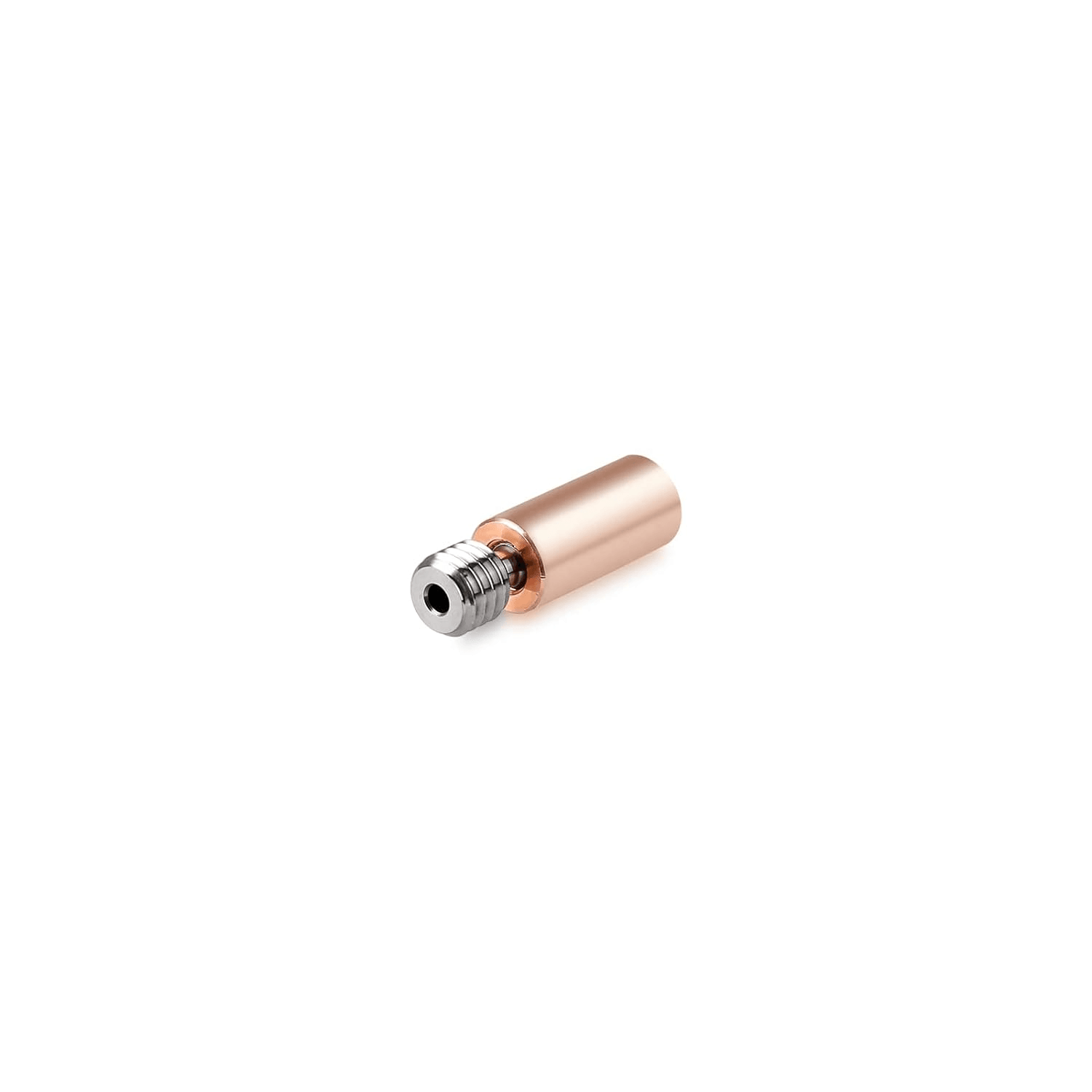

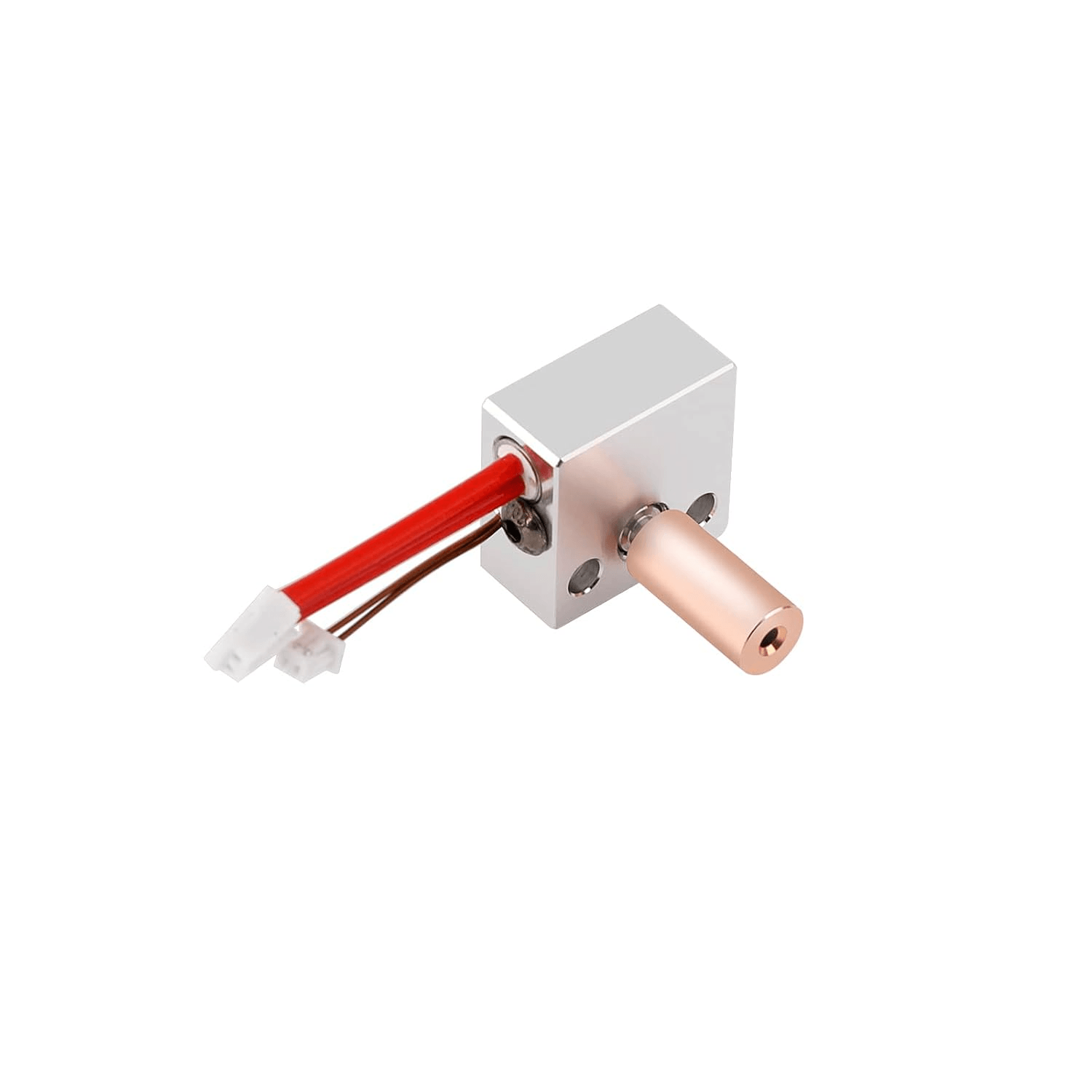

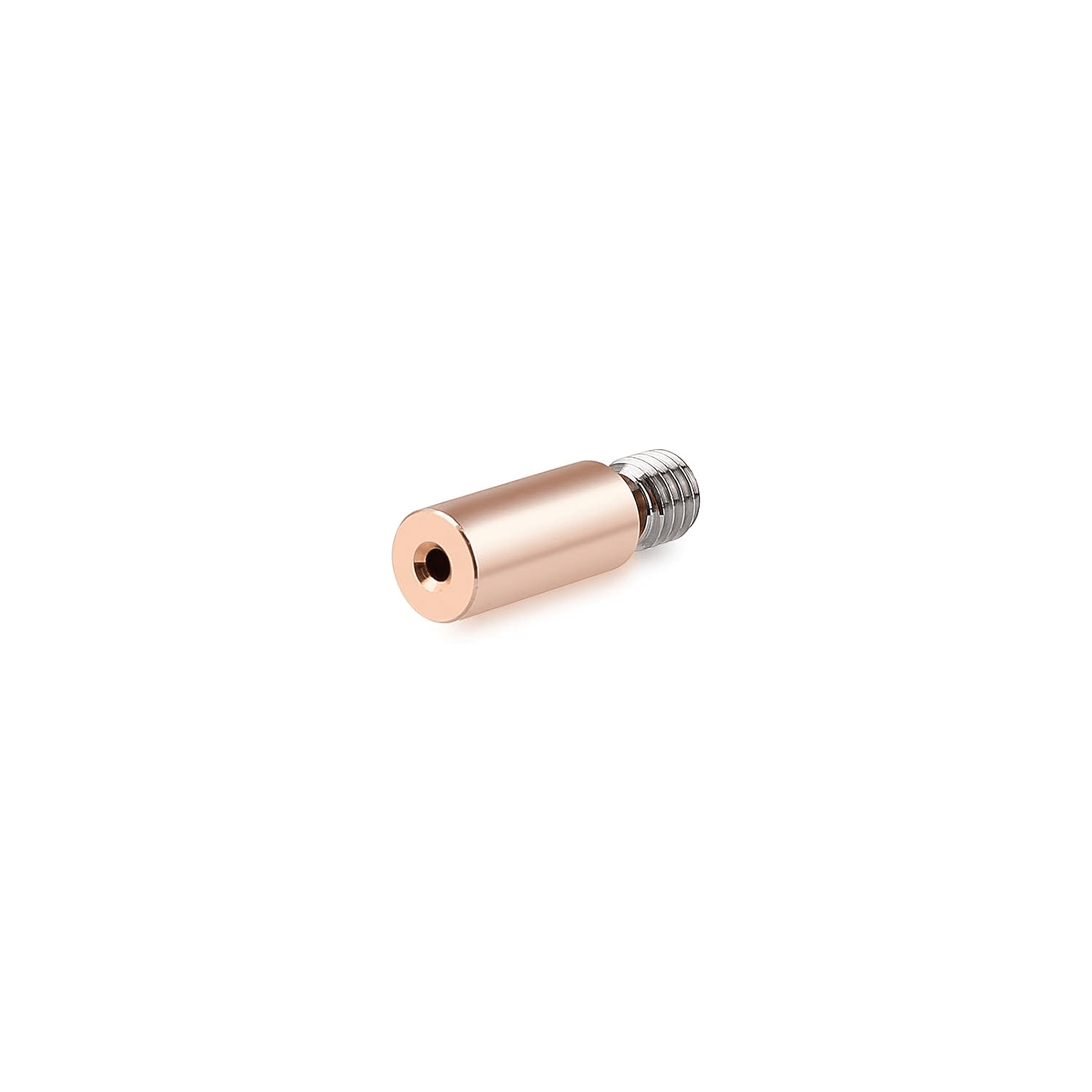

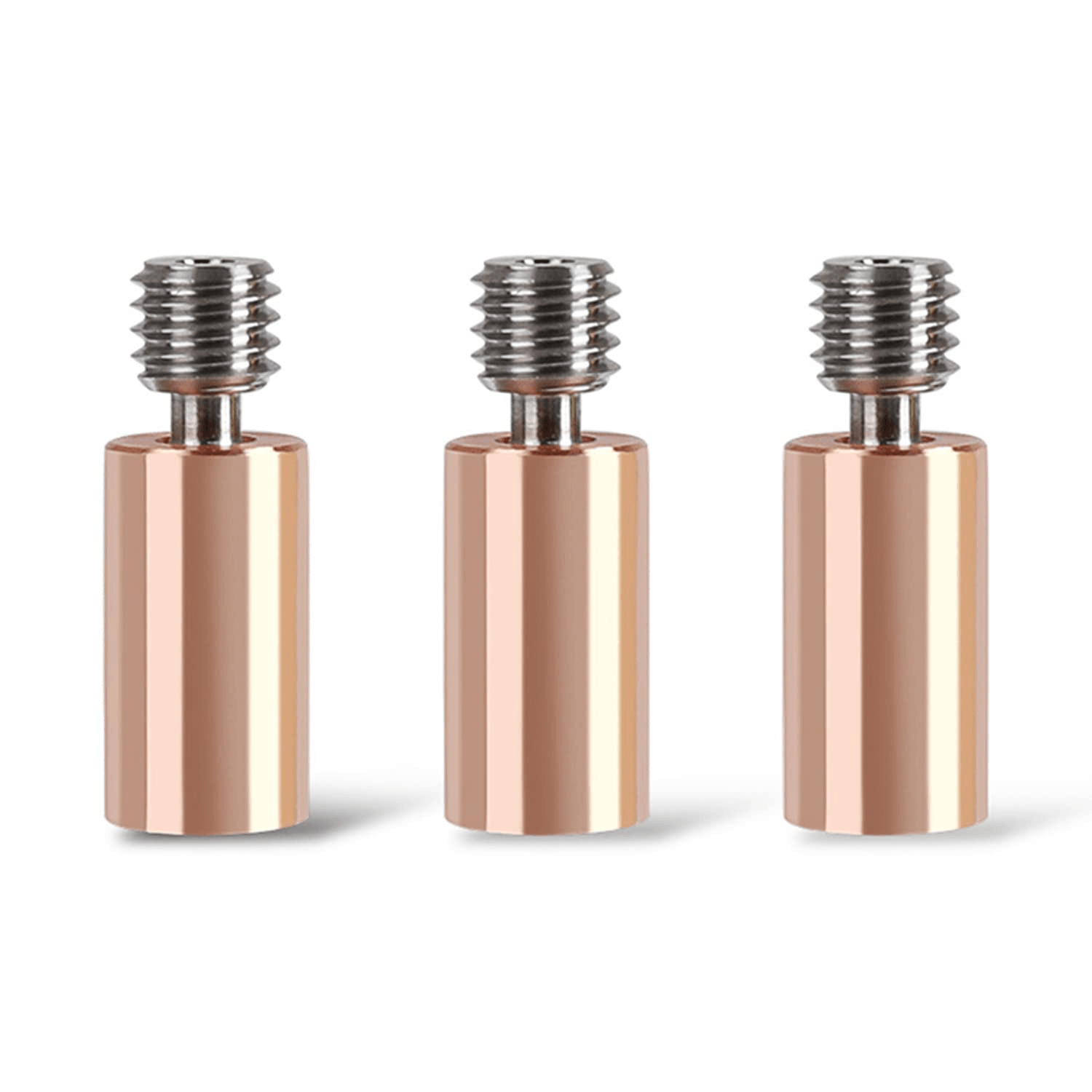

1. Upgraded Bi-metal heat break: Sovol Bi-metal heat break has two components, with different thermal conductivity. It is composed of 2 parts, Copper and Titanium TC4. Titanium TC4 reduces heat upward conduction at the heating position, and copper for heat dissipation to accelerate heat conduction. We use a unique process to hold them firmly together.
2. Premium Performance: Ordinary bi-metal heat break torque is less than 5kg, the inner hole has a poor finish, and the connection part is fixed by glue, which is very easy to fall off and affect printing. Our product is processed by a precision Swiss-type 5-axis machine and made by a precision pressing mechanism. The inner hole finish is 0.3 and the torque is more than 10kg.
3. Compatibility: Sovol Bi-metal heat break is compatible with Sovol SV06, SV06 Plus, SV07 3D Printer.
Notice: When you are using this bi-metal throat, if you set the retraction distance too high, it may cause clogging. A retraction distance of 0.5mm was the most suitable in our tests.
