Sovol SV06 Plus 3D Printer
- Print Size: 300mm*300mm*340mm
- Print Speed Up to 250mm/s
- 4.3 Inch Touchscreen
- Achieve more accurate extrusion
- 300℃ High Temp All Metal High Flow Hotend
All Metal hotend with larger melt zone enables you to print at faster speed and various materials, satisfies your demand for high temp and high speed.
Sovol Self-developed All Metal Direct Drive Extruder with planetary gear set, provides the printer with higher drive ratio and a lighter motor, helps to achieve more accurate extrusion.
Day & Night mode can be switched casually. The unique UI and sensitive response give you better using experience.
The SV06 Plus uses an inductive sensor to automatically detect the metal print bed with 25 points and compensate for any unevenness. This results in fast, smart, and precise leveling for a fantastic first layer.
The PEI-coated Build Plate is flexible, the prints can be removed easily without any tools. The bed is solid, not easy to get scratches even in long-term printing.
It will pause the printing automatically if you run out of your filament, or if the filament is broken.
32bit Mainboard
Sovol Self-developed Mainboard, 32 bit, with TMC 2209, makes the printer work stably and silently. For safety thermal runaway protection is instant & automatic if a thermal error occurs. UART mode is available, more modification can be done easily for advanced users.( Not recommend beginner to modify.)
G34 Auto Z Align
As UART mode is opened on the mainboard, and G34 updated, SV06 Plus has G34 Auto Z align function.If you want to level X axis, all you need to do is click” Auto Z-Aligh*, the printer will process X-axis leveling automatically. Save time and effort.
Belt Tensioner
The big belt tensioner with Sovol lightning sign, very cool, and comfortable to adjust the belt tension to achieve smooth printing result.
Dual Z axis
Dual Z-axis screws and stepper motors improve the accuracy and precision of nozzle’s vertical movement with a specified Z-axis accuracy of 0.001mm.
Resume Printing
The resume printing function can make the printer continue printing perfectly after a power outage.
Product specification
300*300*340mm³
100±0.1mm
Standard 0.4mm (Adjustable)
300℃
100℃
150 mm/s
1.75mm
G-Code
Windows/ Mac/Linux
input 115v/230v50/6Hz Output 24v
Customer Reviews

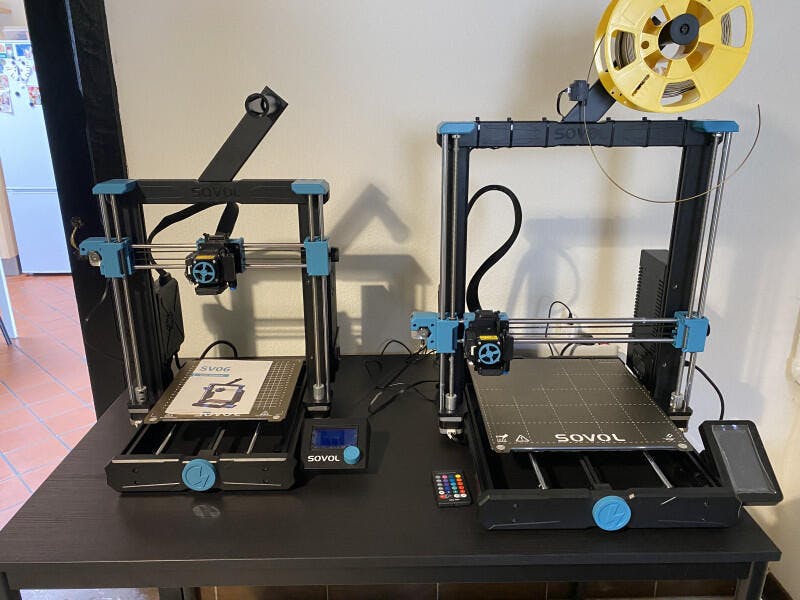

Recently bought a SV06 standard and the SV06 Plus.
Very high quality design and easy to use.
User manual is for even a starter a user friendly setup guide and the service is fast and helpful with all your needs!
I only can recommend this manufacturer 5 stars🥳🙂
Biting Dragon model with glow in the dark eyes, and a spring loaded biting action.
I just got my printer the other day and have been amazed since I got it. I do have a background in tech so I didn't have any hurdles there but this is still my first machine like this and I was up and running in about 45 minutes, I imagine the next one would be way less just from the experience gained with the first. With very little effort I have been getting great prints that I know will just get even better when I get things dialed in and get more prints under my belt. My only qualm being they announced the SV07 shortly before I got the plus but in the end I am very happy with the SV06 Plus and that 07 just might be the next one.
Oh yea, she nice. Sv06 Plus. The little astronaut is the best feature hands down.
Cant wait to try this new one ☝️
