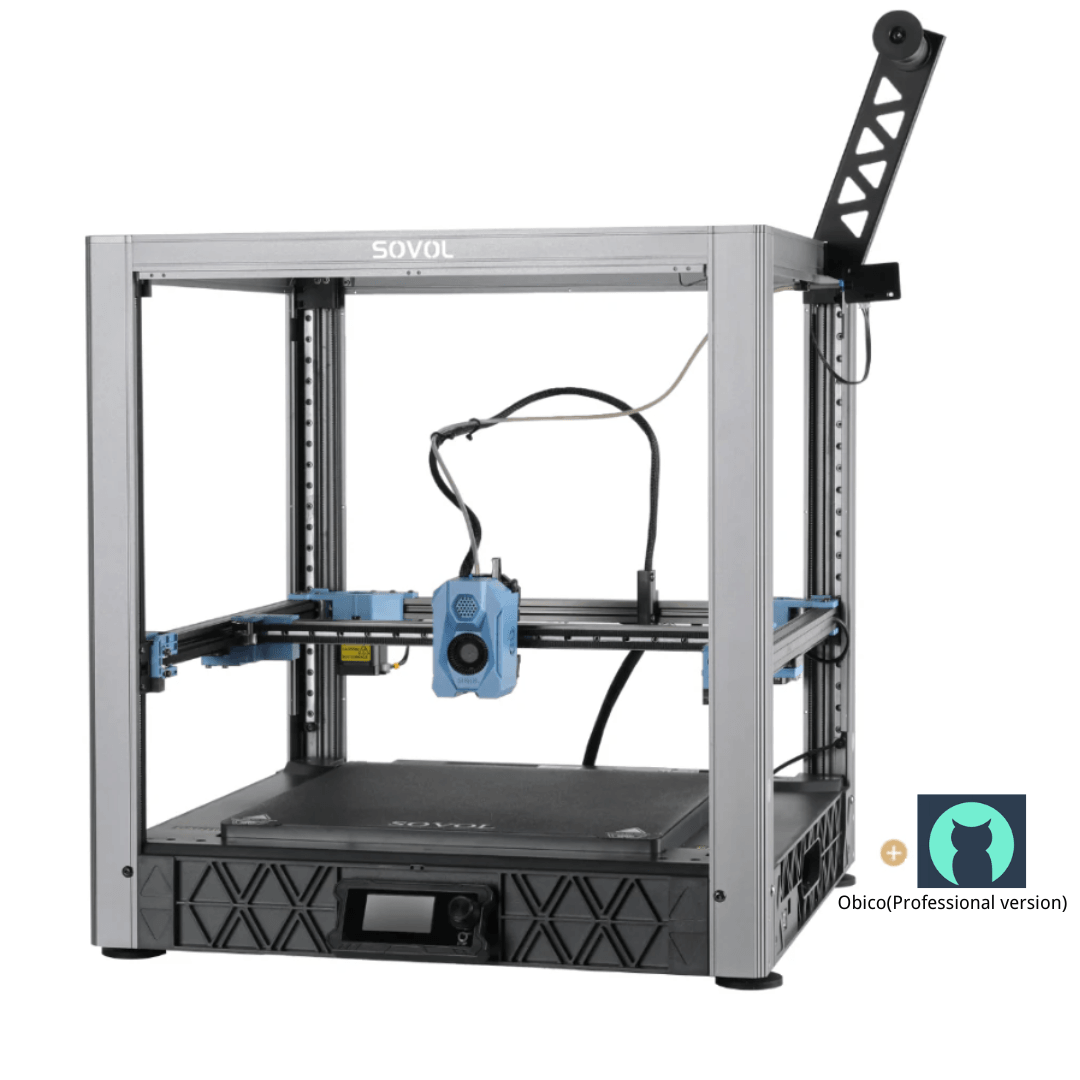

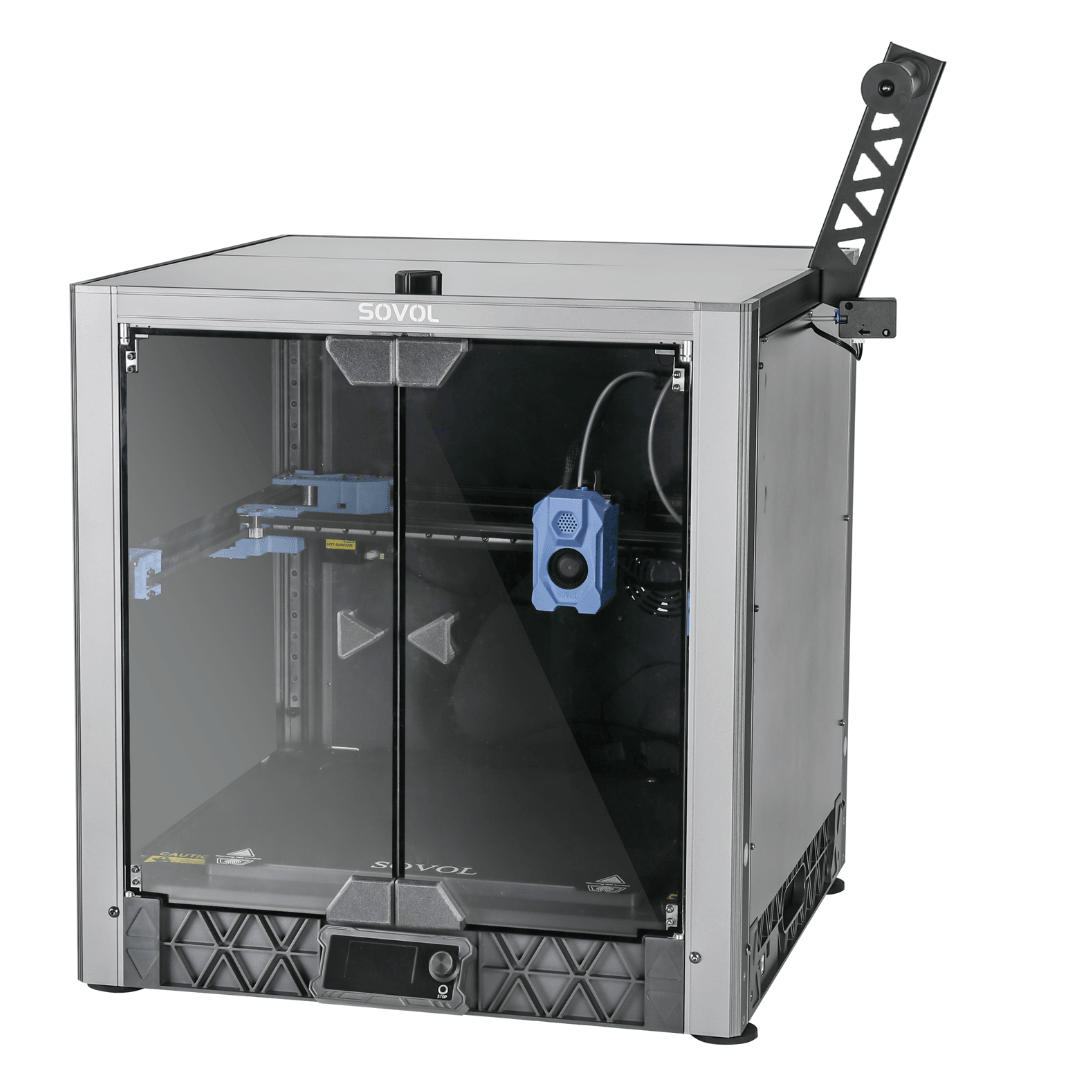

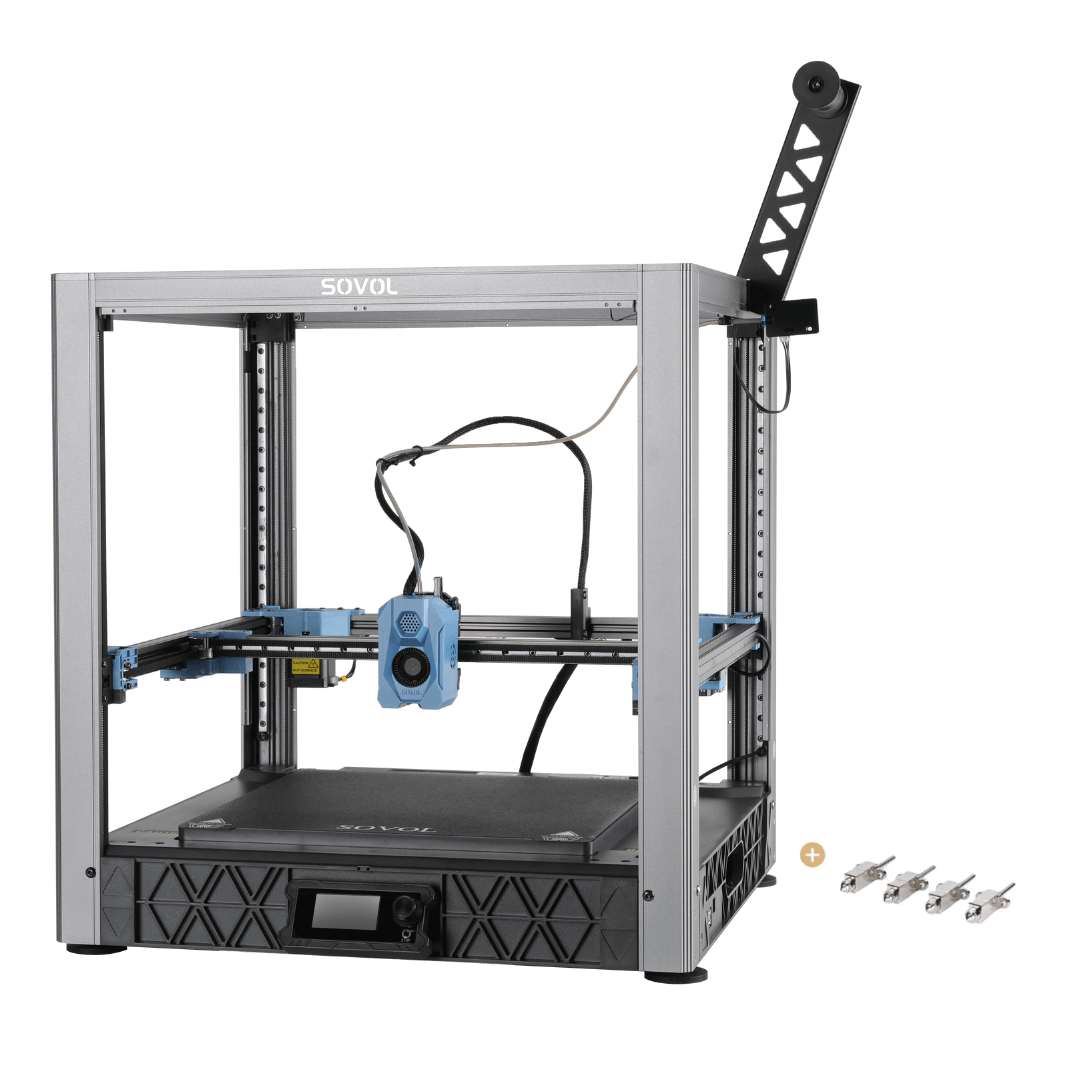

Sovol SV08 3D Printer
- Enjoy More Printing Fun with SV08
- Modify & Upgrade with Open Source
- Max Printing Seed: 700mm/s
- 90% Pre-assembled (1-hour setup)
- Build Volume: 350*350*345mm³
- 4*Independent Z Motors: Enhances Printer Accuracy

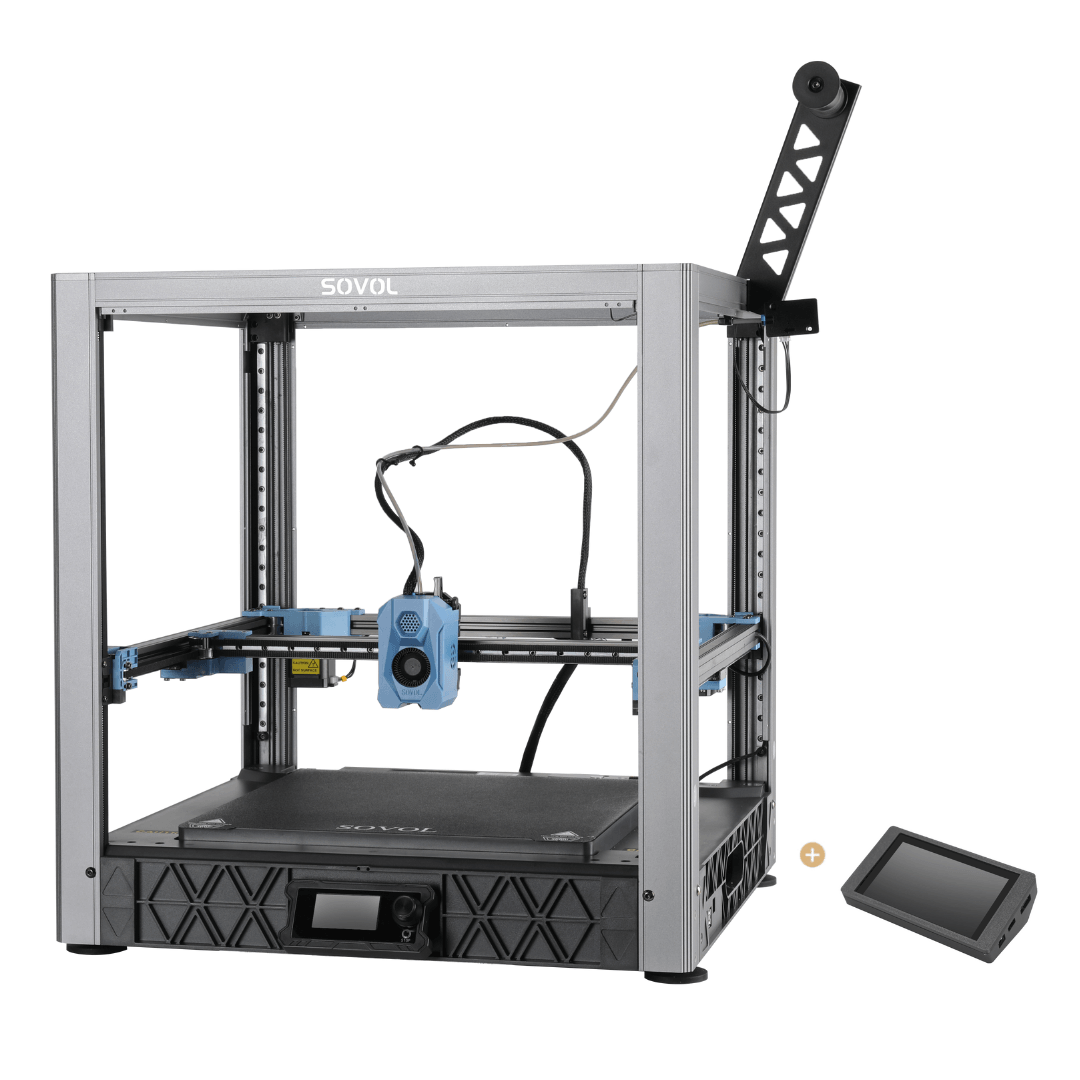

- 5" Touchscreen Swappable & Camera & Remote Control
Inspired by Voron 2.4, the SV08 features a spacious 350×350×345mm³ build volume, printing speeds up to 700mm/s, and an unbeatable price, keeping it at the forefront of 3D printing.
Quick Assembly in 1 Hour
Unlike the Voron 2.4 kit that takes 30+ hours to build, the SV08 comes largely pre-assembled—get your printer ready in just an hour and start printing.

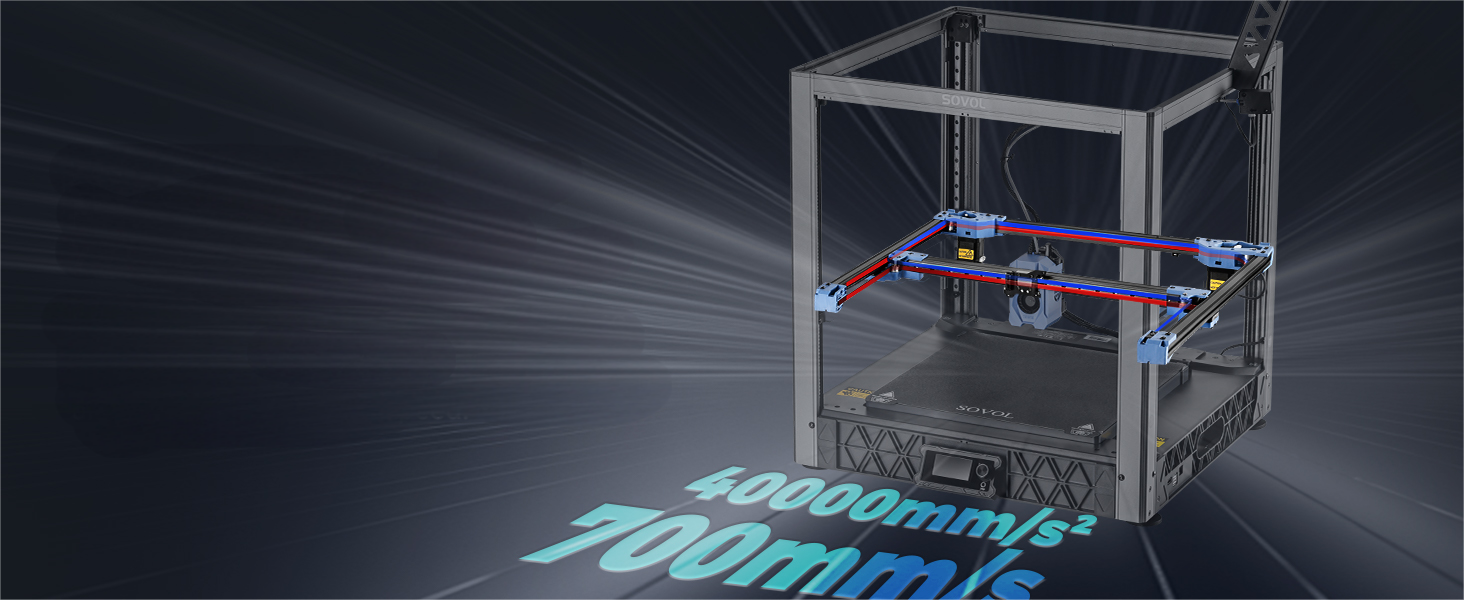

The SV08 utilizes CoreXY kinematics to reduce moving mass and enhance motion control, resulting in higher maximum acceleration and printing speed. The smooth motion of CoreXY also helps reduce vibrations and improve printing accuracy.
With a maximum print speed of 700mm/s and acceleration up to 40,000mm/s², the SV08 delivers faster, high-quality results even for large-scale prints.

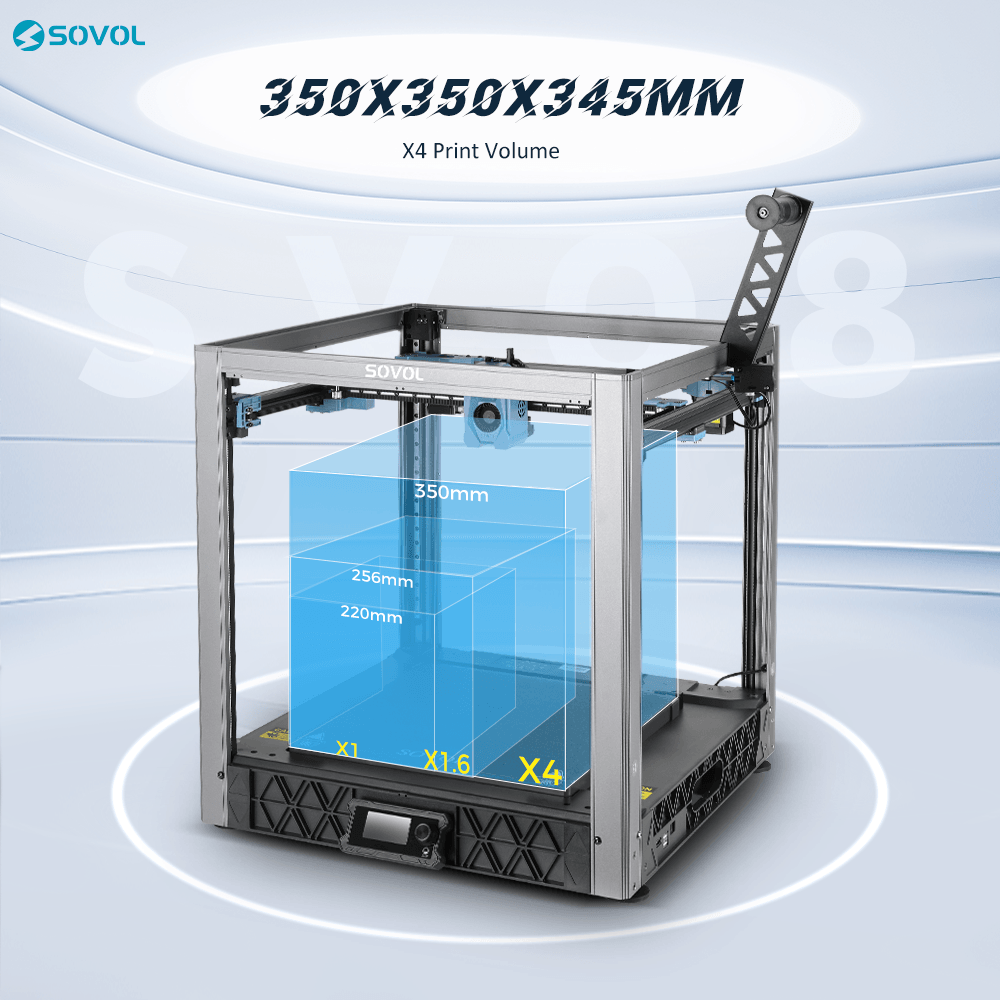

With a generous printing volume of 350x350x345mm³, the expansive space ensures that creation needs to be caged. This freedom allows for the full expression of creativity, unbounded by the limitationsof smaller printing volumes.
SVO8 is equipped with a camera that allows monitoring of the printing process in real time. Additionally, it enables the capturing of time-lapse footage, which is the ability to closely observe and document the printing process, offering convenience and insight into the printing experience.
SVO8 utilizes linear rails for all 7 axes (4Z+2Y+1X) to improve precision and resistance to axial movement deformation.The provision of smooth and precise linear motion is crucial for producing high-quality prints. These rails guide the printer's print head and build platform, ensuring accurate positioning and consistent, smooth movement throughout the printing process.
With a maximum print speed of 700mm/s and acceleration up to 40,000mm/s², the SV08 delivers faster, high-quality results even for large-scale prints.
With a generous printing volume of 350x350x345mm³, the expansive space ensures that creation needs to be caged. This freedom allows for the full expression of creativity, unbounded by the limitationsof smaller printing volumes.
SVO8 is equipped with a camera that allows monitoring of the printing process in real time. Additionally, it enables the capturing of time-lapse footage, which is the ability to closely observe and document the printing process, offering convenience and insight into the printing experience.
SVO8 utilizes linear rails for all 7 axes (4Z+2Y+1X) to improve precision and resistance to axial movement deformation.The provision of smooth and precise linear motion is crucial for producing high-quality prints. These rails guide the printer's print head and build platform, ensuring accurate positioning and consistent, smooth movement throughout the printing process.
Superior Print Quality
Faster, More Precise.
Adaptive Area Detection
Adaptive area detection compensates for leveling based on the downward projection of the print model, effectively reducing leveling preparation time. By detecting the model's geometry, the extrusion volume is optimized to improve accuracy in detail areas.
Pressure Advance
Pressure Advance optimizes extruder control by compensating for extrusion lag. It adjusts flow before movement changes (corners or acceleration/deceleration), ensuring precise extrusion and minimizing over- or under-extrusion, significantly improving print accuracy and speed.
Input Shaping
Input Shaping technology mathematically adjusts the printer’s acceleration commands to compensate for mechanical resonance caused by rapid movements, reducing ringing/ghosting artifacts during printing. This allows for higher printing speeds while maintaining superior print quality.
Open Source
With fully open-source software, firmware, and hardware, you can customize and upgrade your 3D printer, bringing endless joy from the creativity and hands-on experience, not just the prints.
Remote Control
Simply connect SV08 to your LAN using WiFi or an Ethernet port enables convenient interaction with your printers and grants access to a range of features.
4 Independent Z Motors
The entire gantry system can be smoothly leveled using 4 independent Z motors. This process, known as Quad-Gantry-Leveling (QGL), enhances printer accuracy, reducing the likelihood of print failures. It can also detect and compensate for wear or damage.
Efficient Heating Kit
SV08 3D printer heats up rapidly, Ceramic Plate Heating & High-Flow Nozzle reach 300°C quickly and 220°C in 40 seconds. Using ceramic heating block & AC heated bed reduce heating time by 70%, allowing near-instant printing and easy preheating for nozzle cleaning and leveling. Enjoy precise, high-quality prints with versatile material compatibility.
Works Printed By SV08
Product specification
350*350*345mm³
700mm/s
40000mm/s²
≤30mm³/s
±0.1mm
0.08-0.36mm
Inductive sensor & pressure sensor
WiFi (2.4 G), Ethernet
0.4mm (Include), 0.2mm, 0.6mm, 0.8mm
≤300℃(572℉)
≤100℃(212℉)
1.75mm
Windows, Linux, Mac
550*537*575mm (Includes Screen and Filament Holder)
150W/24V
PEI Steel Plate
Planetary gear extruder
Yes
Yes
OrcaSlicer, Cura, PrusaSlicer, Simplify3d
PLA, PEGT, TPU, PEGT-CF, ABS, etc.
G-code
64-bit
H616
1GM
8GB(EMMC)
TMC2209
FAQs
What types of filaments does the Sovol SV08 support?
The Sovol SV08 is compatible with various 3D printing materials, including PLA, PETG, ABS, TPU, and more. With its high-temperature hotend and heated bed, it also supports advanced engineering filaments like PC and PA composites.
What type of extruder system does the SV08 use?
The SV08 features a dual-gear direct drive extruder, ensuring precise filament control. This setup is especially suitable for flexible materials like TPU, reducing clogs and stringing issues.
Does the SV08 support auto-bed leveling?
Yes, the SV08 comes with a fully automatic bed leveling system, ensuring optimal first-layer adhesion, improving print success rates, and eliminating the need for manual adjustments.
Can I monitor my prints remotely?
Yes, the SV08 has a built-in camera that works with Obico, enabling real-time remote monitoring. It also supports timelapse recording, providing insights and convenience during the printing process. Additionally, it can detect spaghetti failures—when a print fails and filament is wasted—automatically pausing the print to prevent further material loss.
How long does it take to assemble the Sovol SV08?
We have done a lot of pre-assembly during the production process, and the SV08 can be assembled in about an hour at normal assembly speed. We also provide an assembly guide manual.
What are the dimensions of the Sovol SV08 3D printer?
Print plate size: 350 × 350 × 345 mm.
Packaging size: 615 × 595 × 335mm.
Printer size: 550 × 537 × 575mm (excluding filament holder).
Is the Sovol SV08 firmware open-source?
Yes, the SV08 supports open-source firmware, allowing users to modify and optimize printing settings for a personalized and innovative 3D printing experience.
What is the relationship between SV08 and Voron 2.4?
The SV08 is designed and manufactured based on inspiration from the Voron 2.4. Sovol maintains a good relationship with Voron and jointly contributes to the open-source 3D printing community. Building upon the foundation of Voron 2.4, Sovol has developed the SV08 and has shared its design, firmware, and related code openly on GitHub, aligning with the open-source philosophy of the Voron community. Additionally, for every SV08 sold, Sovol donates $2 to Voron to support the community's ongoing development.
Sovol's comprehensive open-source documentation makes it highly suitable for schools and professional maker spaces. By opening its source code, providing detailed documentation support, and encouraging community collaboration, Sovol promotes the widespread adoption of 3D printing technology, enabling more people to benefit from the conveniences brought by open-source innovation. This approach resonates with the philosophies of Voron and many other open-source communities.
