What Is CoreXY and Why It Matters in 3D Printing

In 3D printing, CoreXY is a special motion system. It changes how printers work by using two belts. These belts move the print head on the X and Y axes. This setup lets printers work faster without losing quality. When adjusted correctly, CoreXY printers are very accurate. They create sharp and detailed prints. The system also reduces inertia, making movements smoother. This helps printers speed up and slow down easily. It improves performance and makes printing more reliable for great results.

Key Takeaways

• CoreXY printers have a special motion system with fixed motors and belts. This helps them print faster and more precisely.
• The design lowers vibrations, creating smoother moves and sharper prints. This makes CoreXY great for prototypes and high-quality projects.
• Setting up belts and pulleys correctly is very important. Regular care keeps the printer working its best.
• CoreXY's small design saves space but still allows bigger builds. It works well in tiny work areas.
• This technology has changed 3D printing by making it faster and more accurate. It sets a new standard for the industry.

What Is CoreXY?

CoreXY Design and Functionality

CoreXY is special because of its unique motion system. It uses two fixed motors and belts to move the print head. These belts control movement along the X and Y axes. Unlike older systems, the motors in CoreXY do not move. This makes the moving parts lighter, allowing faster and more accurate printing.

CoreXY’s design comes from old drafting tables. These tables used similar systems for smooth and precise motion. This shows how old ideas have shaped modern 3D printing technology.

CoreXY needs its belts and pulleys to be aligned perfectly. If they are not, the printer won’t move properly. But when built correctly, CoreXY printers work amazingly well. This makes them a favorite for advanced 3D printing projects.

How CoreXY Differs from Other Systems

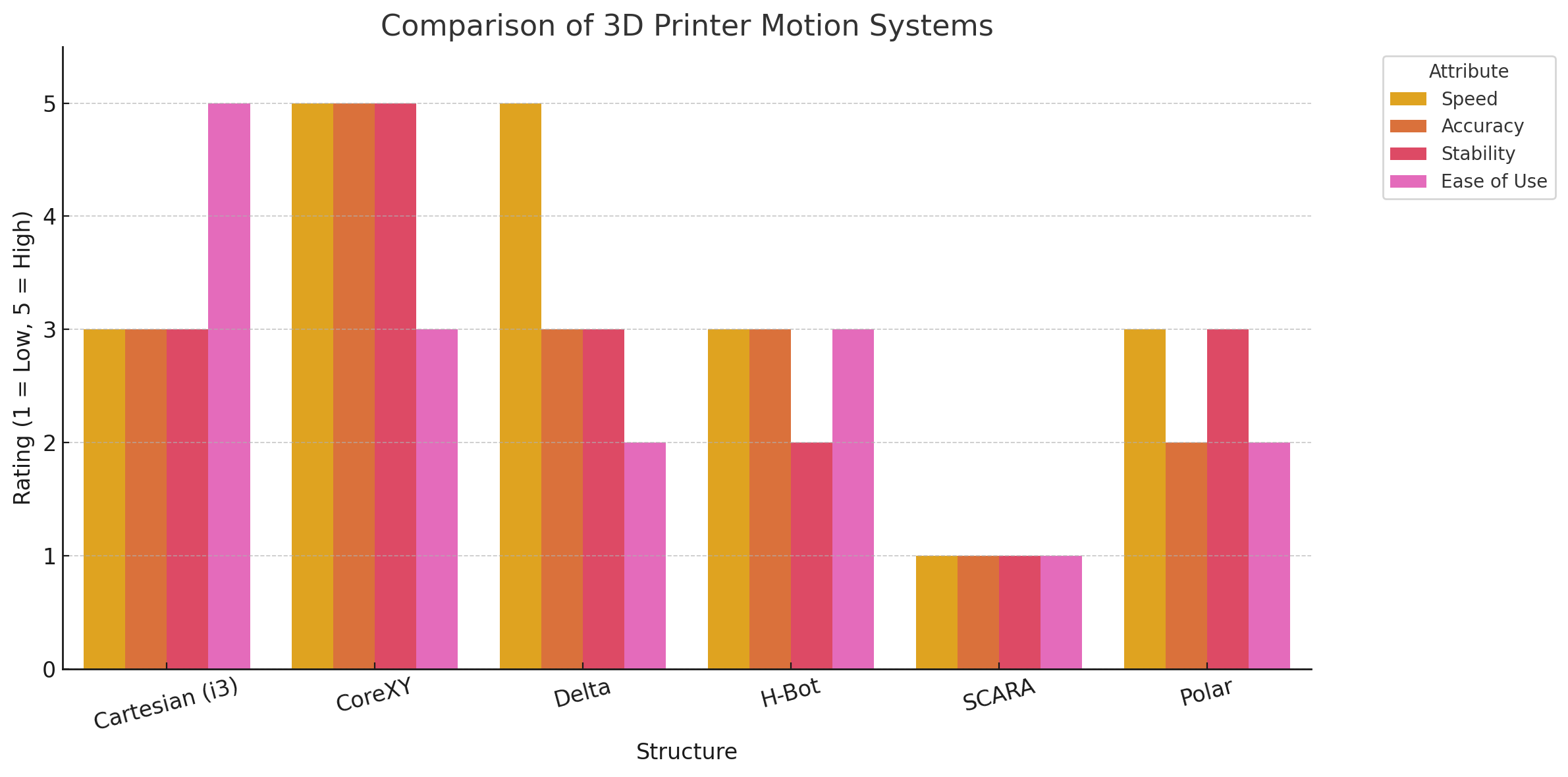

CoreXY is very different from systems like Cartesian and H-Bot. Cartesian systems are simple but have heavy moving motors. This adds weight and slows them down. H-Bot systems use one belt but can have problems like racking, which lowers print quality.

CoreXY fixes these problems with two belts and fixed motors. This setup reduces vibrations and makes movements smoother. It also allows faster printing without losing accuracy. But the belt system is tricky to set up and maintain.

The motion platform is another important part. It helps the printer move smoothly and accurately. The belt path must also be set up carefully. Proper pulley placement keeps movements precise.

CoreXY printers often use advanced hot ends like the Sovol Zero. These hot ends are dependable and can be upgraded for faster printing. With these features, CoreXY printers are great for creating high-quality 3D prints.

How CoreXY Works

Stationary Motors and Their Role

In CoreXY printers, the motors stay in one place. This helps the printer work better and faster. Other systems have motors that move with the print head. CoreXY keeps them fixed, making moving parts lighter. Lighter parts allow quicker printing and better accuracy.

Stationary motors also reduce vibrations during printing. Vibrations can mess up details, especially at high speeds. CoreXY avoids this, giving smoother movements and better control. This leads to sharper and more detailed prints.

Having fixed motors also makes calibration easier. Moving motors in other systems can make alignment harder. CoreXY’s design avoids this problem, giving reliable and repeatable results.

Belt System Configuration

The belt system is key to how CoreXY works. It links the fixed motors to the print head for precise X and Y movements. To keep accuracy, the belts must be set up correctly.

Here are tips for setting up the belts:

• Keep belts straight and parallel to the guide rails. This avoids uneven tension and movement.
• Place pulleys and motors carefully to avoid errors. Misaligned parts can cause printing mistakes.
• Pick the right belt thickness for your printer. Thicker belts may need design changes.

A good belt setup makes the printer move smoothly and accurately. This is important for getting precise prints. Regularly checking and adjusting the belts keeps the printer working well over time.

Impact on Print Bed Stability

CoreXY printers improve the stability of the print bed. In many printers, the bed moves during printing, causing vibrations. These vibrations can lower print quality. CoreXY often uses a bed that doesn’t move much or stays still. This makes the bed more stable.

A stable bed helps prints stick well and keep their shape. It also prevents layers from shifting when the bed moves. With CoreXY, you can print fast without losing quality.

A stationary bed also makes calibration easier. You only need to level the bed without worrying about extra adjustments. This helps you get accurate and high-quality prints every time.

Advantages of CoreXY 3D Printers

High-Speed Printing Capabilities

CoreXY printers are great for printing fast. Their design uses fixed motors and a light print head. This allows quick movements while keeping quality high. For example, the Sovol Zero can print at 1200mm/s. This makes it perfect for fast prototypes or big projects.

Unlike older Cartesian printers, CoreXY stays accurate at high speeds. It reduces shaking and moves smoothly. This keeps prints sharp and detailed. Because of this, CoreXY printers are loved by both experts and hobbyists.This is also the reason why mainstream 3D printer brands such as Bambu lab, Creality, Voron, etc. choose CoreXY.

Precision and Dimensional Accuracy

CoreXY printers are very precise. Fixed motors and belts help avoid mistakes. Aligning the axes correctly is very important for accuracy. Tools like electronic protractors can help adjust the X and Z axes. This ensures the printer makes exact shapes and sizes.

Less shaking in CoreXY printers also improves accuracy. Shaking can ruin small details in designs. With CoreXY, your prints will match your designs perfectly.

Compact Design and Space Efficiency

CoreXY printers are small but use space well. They give more build space without taking up extra room. This is helpful if your workspace is small. Compared to Cartesian printers, CoreXY uses space better.

This compact design fits well in homes or studios. You get great performance without needing much space.

Why CoreXY Matters in 3D Printing

Applications in Rapid Prototyping

CoreXY is important for making prototypes quickly. Its special design helps create models fast without losing quality. This makes it great for industries like cars and airplanes, where speed and accuracy are needed. CoreXY printers, like the Sovol Zero, are very good at this. They can print at speeds up to 1200mm/s, making detailed models fast for testing and development.

CoreXY printers can also handle bigger projects. You can print large parts or many small ones at once. This saves time and makes work more efficient. The smooth prints from CoreXY look professional and need little extra work after printing.

Benefits for High-Quality Production

CoreXY printers are not just for testing; they are great for making high-quality products too. Their smart design ensures parts are the right size and shape, which is very important for manufacturing.

The fixed motors in CoreXY printers stop vibrations, so prints have smoother surfaces. This is helpful for items that need a clean, polished look. The belt system and easy setup make these printers reliable for long-term use. Whether you’re making tools or detailed designs, CoreXY gives great results every time.

Contribution to 3D Printing Innovation

CoreXY has changed how 3D printing works. Its clever design has led to new ideas in the industry. By fixing problems with older systems, CoreXY has set a new level for speed, accuracy, and efficiency.

Many top brands now use CoreXY in their printers. Models like the Sovol Zero and Voron 2.4 show how powerful this system is. These printers prove that CoreXY can do amazing things in 3D printing. As technology grows, CoreXY keeps leading the way, making it a key part of modern 3D printing.

CoreXY has changed 3D printing with its speed and accuracy. Its smart design allows smooth movement and less shaking. This makes it great for quick prototypes and detailed production.

If you need fast, accurate, and space-saving printing, try CoreXY. It uses advanced ideas to make 3D printing easier and better for all projects.

FAQ

How are CoreXY printers different from other 3D printers?

CoreXY printers use belts and fixed motors to move. This design makes moving parts lighter. Lighter parts allow faster and more accurate printing. Unlike Cartesian printers, CoreXY reduces shaking for better print quality.

Are CoreXY printers good for beginners?

CoreXY printers can be hard for beginners to set up. They need careful assembly and alignment. But with practice and help, you can learn to use them. Once you know the basics, they give great results.

How do you take care of a CoreXY printer?

Check the belts often to keep them tight and straight. Clean and oil the guide rails for smooth movement. Look at the pulleys and motors for damage. Good care keeps the printer working well and prints looking great.

Can CoreXY printers handle big printing jobs?

Yes, CoreXY printers are great for big projects. Their smart design lets them print large items fast and with high quality. This makes them a favorite for both experts and hobbyists.

Why is a stable print bed important in CoreXY printers?

A stable bed keeps layers lined up during printing. CoreXY printers often have beds that don’t move much. This reduces shaking and makes calibration easier. A steady bed helps create accurate and reliable prints.
