You know how frustrating it feels when your print shifts halfway through and ruins hours of work. Layer shifting can make even the simplest project fail. You want a 3d printer layer shifting fix that works at home. Most problems come from loose parts or quick settings checks. You can solve many issues without special tools. Try these simple steps to get your printer back on track.
Key Takeaways
- Layer shifting happens when the print head or bed moves wrong. This makes the layers uneven. If you notice the signs early, you can save time and material.
- Loose belts, stepper motor problems, and dirty rails often cause layer shifting. Doing regular maintenance can stop these issues.
- To fix layer shifting, tighten the belts. Clean the rails. Lower the print speed. These easy steps can make your prints much better.
- Always look at your printer's firmware and software. Keeping them updated helps stop mistakes that cause layer shifting.
- Make a habit of checking your printer before each print. Do regular maintenance. Good habits help your prints work well and lower the chance of layer shifting.
What Is Layer Shifting?
Layer Shifting Defined
Layer shifting happens when your 3D printer moves the print head or bed out of alignment during a print. You see the layers stack unevenly, causing the object to look crooked or broken. This problem usually comes from mechanical or electrical issues. You want to fix layer shifting because it ruins your prints and wastes time.
Note: Layer shifting is one of the most common reasons for failed prints. You can solve it with a 3d printer layer shifting fix.
Recognizing Layer Shifting
You spot layer shifting by looking at your print. The layers do not line up. The object may have a sudden step or shift in the middle. Sometimes, the print looks like it has been pushed sideways. You may notice:
- Jagged edges
- Misaligned parts
- Gaps or cracks in the print
- Parts sticking out where they should not
If you see these signs, your printer needs attention.
Print Failures From Layer Shifts
Layer shifting causes several types of print failures. You may see:
|
Failure Type |
Description |
|---|---|
|
Structural Weakness |
Parts break easily or do not fit |
|
Cosmetic Defects |
Prints look messy or uneven |
|
Complete Print Loss |
Print stops or falls apart |
You want to avoid these problems. Checking for layer shifting early helps you save time and material. You can use a 3d printer layer shifting fix to get better results and more reliable prints.
Causes Of Layer Shifting
Loose Belts And Pulleys
Layer shifting can happen if belts or pulleys are loose. Belts help move the print head and bed. If belts are too loose, they might slip and mess up layers. Pulleys that slip can also cause sudden shifts. You should check belts for cracks or if they look worn out. Clean belts to get rid of dust. Make sure belts are tight enough. Loose belts often cause layer shifting.
- Check belts often for cracks or fraying.
- Clean belts so dust does not build up and cause slipping.
- Make sure belts are tight, because loose belts can make layers shift.
Stepper Motor Issues
Stepper motors help your printer move. If motors are not strong enough, layers can shift. You might see layers not lining up if belts are loose or motors get too hot. If motors overheat, prints may not be steady. Listen for strange sounds or feel for shaking. These signs mean there could be a stepper motor problem.
- Not enough stepper motor strength can make layers shift.
- Loose belts can make layers not line up right.
- If motors get too hot, prints may shift and not look good.
Rail Obstructions
Rails help guide the print head and bed. Dust, dirt, or leftover filament can block the rails. You should clean rails often. If rails are blocked, the printer can stop or jump, which shifts layers. Clean rails help the printer move the right way.
High Print Speed
Printing too fast can make layers shift. The print head or bed might move faster than the motors can handle. If you see layers not lining up, try printing slower. High speed can make the print head or bed move too quickly, which causes problems.
| High printing speed | Can make the print head or bed move too fast, which can mess up layers. |
Firmware Or Software Errors
Old software can make prints fail. You should update firmware and slicer software often. Software mistakes can cause layer shifting. Keeping software up to date helps stop print problems.
Old software can make prints fail, including layer shifting.
Mechanical Binding
Mechanical binding happens when parts stick or rub together. You should look for bent rods or parts that do not line up. If parts stick, the printer cannot move smoothly and layers can shift. Oil moving parts and fix anything that is not lined up.
|
Cause |
Explanation |
|---|---|
|
If the build plate is not lined up, layers can stick unevenly and shift. |
|
|
Improper Build Plate Leveling |
If the build plate is not level, layers may not cure right and can shift. |
Power Supply Problems
A weak or shaky power supply can make motors skip steps. You should use a good power source. If power cuts out, the printer can shift and the print can fail. Good power helps your printer work well.
Tip: Fixing these problems helps you find the right 3d printer layer shifting fix for your printer.

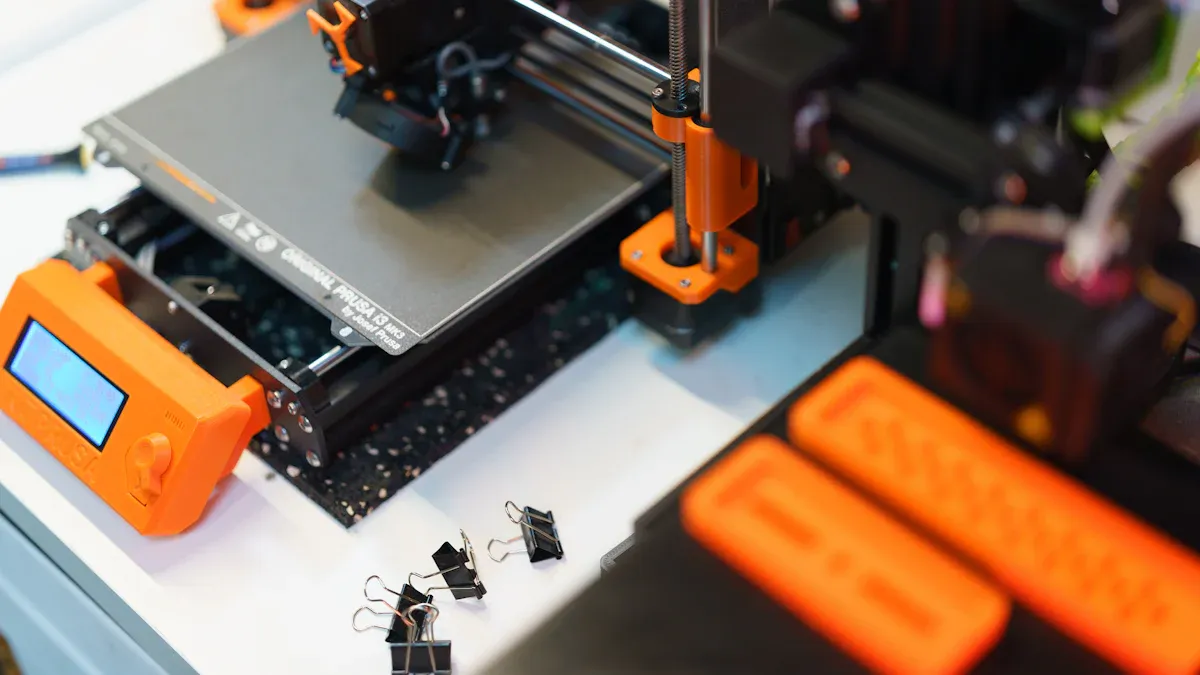

3d Printer Layer Shifting Fix Steps
Tighten Belts And Pulleys
Loose belts and pulleys often cause layer shifting. You can fix this problem with a few simple steps:
- Pause your print and check the belts for any damage or looseness.
- Tighten all loose screws on the printer’s frame and moving parts.
- Inspect the pulleys and make sure they are secure on the motor shafts.
- Clean the belts to remove dust or debris.
- If you find cracks or worn spots, replace the belts.
- After making adjustments, restart your print and watch the first few layers closely.
You can solve many shifting problems with this 3d printer layer shifting fix.
Fix Stepper Motor Problems
Stepper motors move the print head and bed. If they do not work well, layers can shift. Follow these steps to check and fix stepper motor issues:
- Check your print settings to match your filament type.
- Look at your printing area. Cold air or high humidity can affect the motors.
- Clean the printer’s material tank to remove any debris.
- Level the print bed for better layer adhesion.
- Inspect your model design for errors and add supports if needed.
- Test the extruder and make sure it works smoothly.
- Examine belts and pulleys again, tightening them if needed.
- Lubricate moving parts so everything moves easily.
- Calibrate the stepper motors. Check for overheating and adjust voltage if needed.
- Tighten all screws on the printer frame and bed.
You can prevent layer shifting by keeping your motors in good shape.
Clean Rails And Remove Debris
Dirty rails can block the print head or bed. You should keep them clean for smooth movement.
- Turn off your printer and let it cool down.
- Use a soft cloth to wipe dust and debris from the rails.
- Check for leftover filament or grease buildup.
- Move the print head by hand to feel for any rough spots.
- Apply a small amount of lubricant if the rails feel dry.
Clean rails help your printer move smoothly and reduce the risk of shifting layers.
Lower Print Speed
Printing too fast can cause the printer to skip steps. You can lower the print speed in your slicing software.
- Reduce print speed if you notice frequent shifts.
- Start with a slower speed and increase it only if prints look good.
- Watch the first few layers to see if the problem goes away.
A slower speed gives the motors more time to move and helps prevent layer shifting. This is a simple 3d printer layer shifting fix you can try right away.
Adjust Wall Order
The order in which your printer builds the walls can affect print quality. Try changing the wall order to inner-outer-inner in your slicer settings.
- Open your slicing software.
- Find the wall order setting.
- Set it to print inner walls first, then outer, then inner again.
- Save your changes and re-slice your model.
This adjustment can make your prints stronger and reduce the chance of shifting layers.
Update Firmware Or Software
Old firmware or slicer software can cause errors. You should keep your printer’s software up to date.
- Check the manufacturer’s website for the latest firmware.
- Download and install updates as needed.
- Update your slicing software to the newest version.
- Re-slice your model after updating.
New software often includes fixes for common problems like layer shifting.
Check For Mechanical Binding
Mechanical binding happens when parts rub or stick. You can fix this by checking for misaligned or bent parts.
- Inspect rods and rails for bends or damage.
- Make sure the build plate is level and secure.
- Look for parts that do not line up or move smoothly.
- Lubricate moving parts to reduce friction.
- Tighten any loose screws or bolts.
A smooth-moving printer will give you better prints and fewer problems.
Ensure Stable Power
A stable power supply keeps your printer running smoothly. Unstable power can cause motors to skip steps and shift layers. Use these best practices to keep your power supply reliable:
|
Best Practice |
Explanation |
|---|---|
|
Load Regulation |
Keeps output voltage steady even when the printer’s load changes. Less than ±1% is best. |
|
Line Regulation |
Maintains stable output even if input voltage changes. This is important for reliable printing. |
|
Heat Dissipation |
Good cooling helps the power supply last longer and work better. |
|
Safety Certifications |
Look for UL, CE, or similar marks to ensure safety and efficiency. |
|
Energy Efficiency |
Choose a power supply with a high efficiency rating to save energy and reduce heat. |
A stable power supply is a key part of any 3d printer layer shifting fix. You can avoid many problems by using a quality power source.
By following these steps, you can solve most layer shifting problems at home. Each 3d printer layer shifting fix above helps you get better, more reliable prints.
Preventing Layer Shifting
Maintenance Tips
You keep your 3D printer running well by doing regular maintenance. Clean the rails and moving parts every week. Lubricate the rods and bearings to help the print head move smoothly. Tighten all screws and bolts on the frame. Check belts for signs of wear or cracks. Replace any damaged parts right away. Use a soft brush or cloth to remove dust from the electronics. Make sure the power supply stays cool and free from dust.
Tip: Set a reminder to check your printer every month. This habit helps you catch problems before they cause layer shifting.
Pre-Print Checks
Before you start a print, you should do a quick check. Level the build plate so the first layer sticks well. Inspect the filament for knots or tangles. Make sure the extruder feeds filament smoothly. Look at the belts and pulleys to see if they are tight. Test the stepper motors by moving the print head and bed. Check the slicer settings for correct speed and wall order. Update your firmware and software if needed.
|
Check Item |
Why It Matters |
|---|---|
|
Build Plate Level |
Prevents uneven layers |
|
Filament Quality |
Stops jams and shifting |
|
Belt Tension |
Keeps movement accurate |
|
Motor Function |
Avoids skipped steps |
Printing Best Practices
You get better prints by following best practices. Start with a slow print speed, especially for new models. Use the inner-outer-inner wall order in your slicer. Watch the first few layers to spot problems early. Keep your workspace clean and free from dust. Avoid printing in areas with sudden temperature changes. Use a surge protector to keep power stable. If you see signs of layer shifting, pause the print and try a 3d printer layer shifting fix right away.
Note: Consistent habits and careful checks help you avoid layer shifting and get reliable prints every time.
You can solve most layer shifting problems with simple checks and regular care. Start with the basics, like cleaning the print bed and leveling it. Use a step-by-step approach to spot small issues early. Try these actions for a reliable 3d printer layer shifting fix:
- Clean the printer before each job.
- Level the bed and adjust the nozzle.
- Keep filament dry and change one setting at a time.
Stay patient and keep learning. Good habits lead to better prints every time.
FAQ
What causes layer shifting in 3D printers?
Layer shifting happens when belts, pulleys, or motors slip. You may also see shifting from dirty rails, high print speed, or power issues. Check these parts first for a quick 3d printer layer shifting fix.
How do you fix layer shifting at home?
You can tighten belts, clean rails, lower print speed, and update firmware. Try these steps before changing advanced settings. Most home users solve layer shifting with basic maintenance.
Can software settings affect layer shifting?
Yes. Incorrect slicer settings or outdated firmware can cause shifting. Update your software and adjust wall order for a reliable 3d printer layer shifting fix.
Why does layer shifting happen only in the middle of a print?
Layer shifting in the middle often means belts loosen, motors overheat, or rails get blocked. Watch your printer during the job and pause if you see problems.
How can you prevent layer shifting in future prints?
Tip: Clean your printer, check belt tension, and level the bed before each print. Use slow speeds and stable power. These habits help you avoid layer shifting and keep prints strong.
